116TX Unmanaged Industrial Ethernet Switch

The compact N-Tron 116TX unmanaged Industrial Ethernet switch, from Red Lion, is ideal for industrial applications that demand dependable performance under harsh conditions. The compact 16-port device offers exceptional reliability and performance for a range of mission-critical applications including data acquisition, Ethernet I/O, and process control.

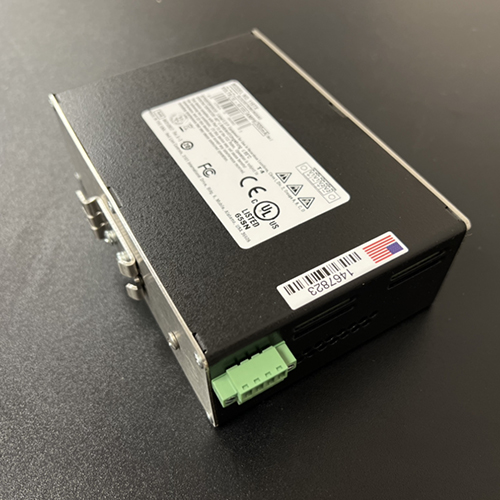

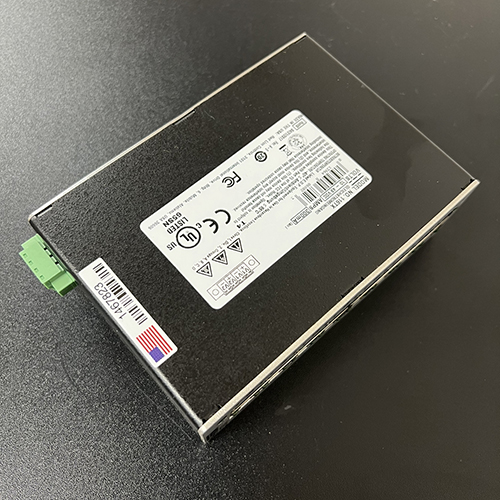

Delivered in a rugged industrial metal enclosure, the 116TX provides 16 high-performance 10/100BaseTX copper ports with full wire speed communications, up to 3.2 Gb/s throughput, for robust network support. The unit boasts exceptional MTBF and extended tolerances to shock, vibration, temperature fluctuations and noise – common elements in factory floor control networks, utilities, wastewater treatment, wind turbines, rail car, intelligent traffic control, and transportation applications.

User-Friendly Unmanaged Industrial Ethernet Switch Model 116TX

The compact 116TX is an excellent plug & play solution. For convenience, the unit configures itself on the network at connection and features auto sensing 10/100BaseTX ports that intuitively negotiate speed and data flow. Automatic features enable instant recognition of network changes and/or updates, adjusting communications on the fly.

Excellent Network Support

Compact and powerful, the 116TX is designed with advanced communication processing, store-and-forward technology and high-speed processing that allows full wire speed on all ports simultaneously. The unit is optimized for increased determinism and eliminates virtually all network collisions. The 16 high-performance network ports instantly recognize and resolve 10/100BaseTX, MDIX and duplex conflicts. For added convenience, LEDs are provided to display link status and activity for each port.

Features of the N-Tron 116TX from Red Lion

• Unmanaged Plug and Play Operation
• 16 port 10/100BaseTX Industrial Ethernet Switch
  • Sixteen 10/100BaseTX RJ-45 Ports
• Slim, Space-saving design
• IEEE 802.3 Compliance
• Extended Environmental Specifications
  • -40° to 85°C Operating Temperature
  • >2M Hours MTBF
• Supports Full/Half Duplex Operation
• Up to 3.2 Gb/s Maximum Throughput
• MDIX Auto Sensing Cable
• Auto Sensing Speed and Flow Control
• Full Wire Speed Communications
• ESD Protection Diodes on RJ-45 Ports
• Surge Protection Diodes on Power Inputs
• Store-and-forward Technology
• Redundant Power Inputs (10-49 VDC)
• LED Link/Activity Status Indication
• Rugged Metal DIN-Rail Enclosure
